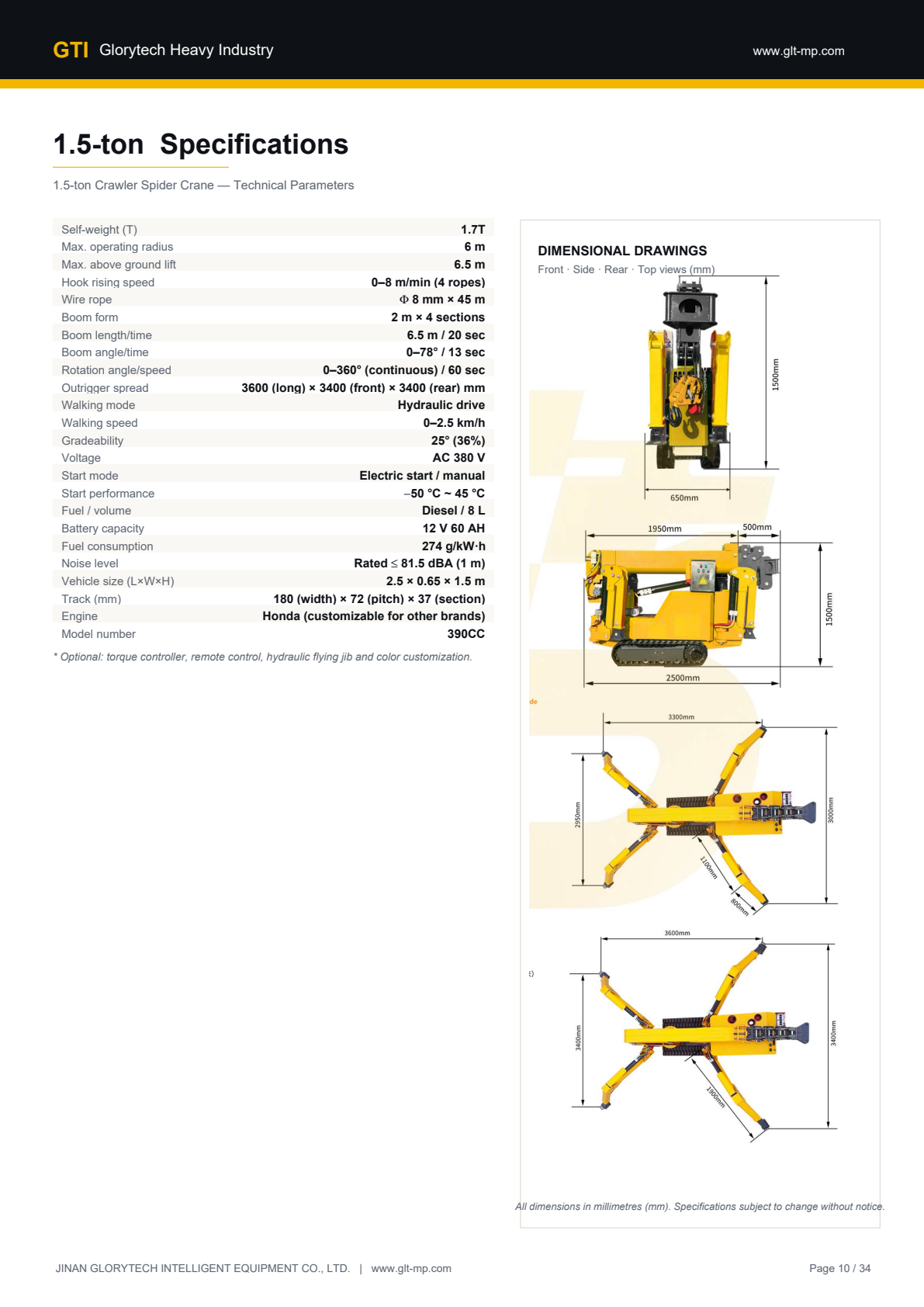

Slightly larger 1.5-ton capacity with extended 6.5 m reach, keeping the same compact 0.65 m crawler footprint - built for confined space and indoor installation work.
| Self-weight | 1.7 T |
|---|---|
| Max. operating radius | 6 m |
| Max. above ground lift | 6.5 m |
| Hook rising speed | 0-8 m/min (4 ropes) |
| Wire rope | F 8 mm x 45 m |
| Boom form | 2 m x 4 sections |
| Boom length/time | 6.5 m / 20 sec |
| Boom angle/time | 0-78 deg / 13 sec |
| Rotation angle/speed | 0-360 deg (continuous) / 60 sec |
| Outrigger spread | 3600 (long) x 3400 (front) x 3400 (rear) mm |
| Walking mode | Hydraulic drive |
| Walking speed | 0-2.5 km/h |
| Gradeability | 25 deg (36%) |
| Voltage | AC 380 V |
| Start mode | Electric start / manual |
| Start performance | 50 ~ 45 deg C |
| Fuel / volume | Diesel / 8 L |
| Battery capacity | 12 V 60 AH |
| Fuel consumption | 274 g/kW.h |
| Noise level | Rated <= 81.5 dBA (1 m) |
| Vehicle size (LxWxH) | 2.5 x 0.65 x 1.5 m |
| Track | 180 (width) x 72 (pitch) x 37 (section) mm |
| Engine | Honda 390CC (customizable) |
* Optional: torque controller, remote control, hydraulic flying jib and color customization.
