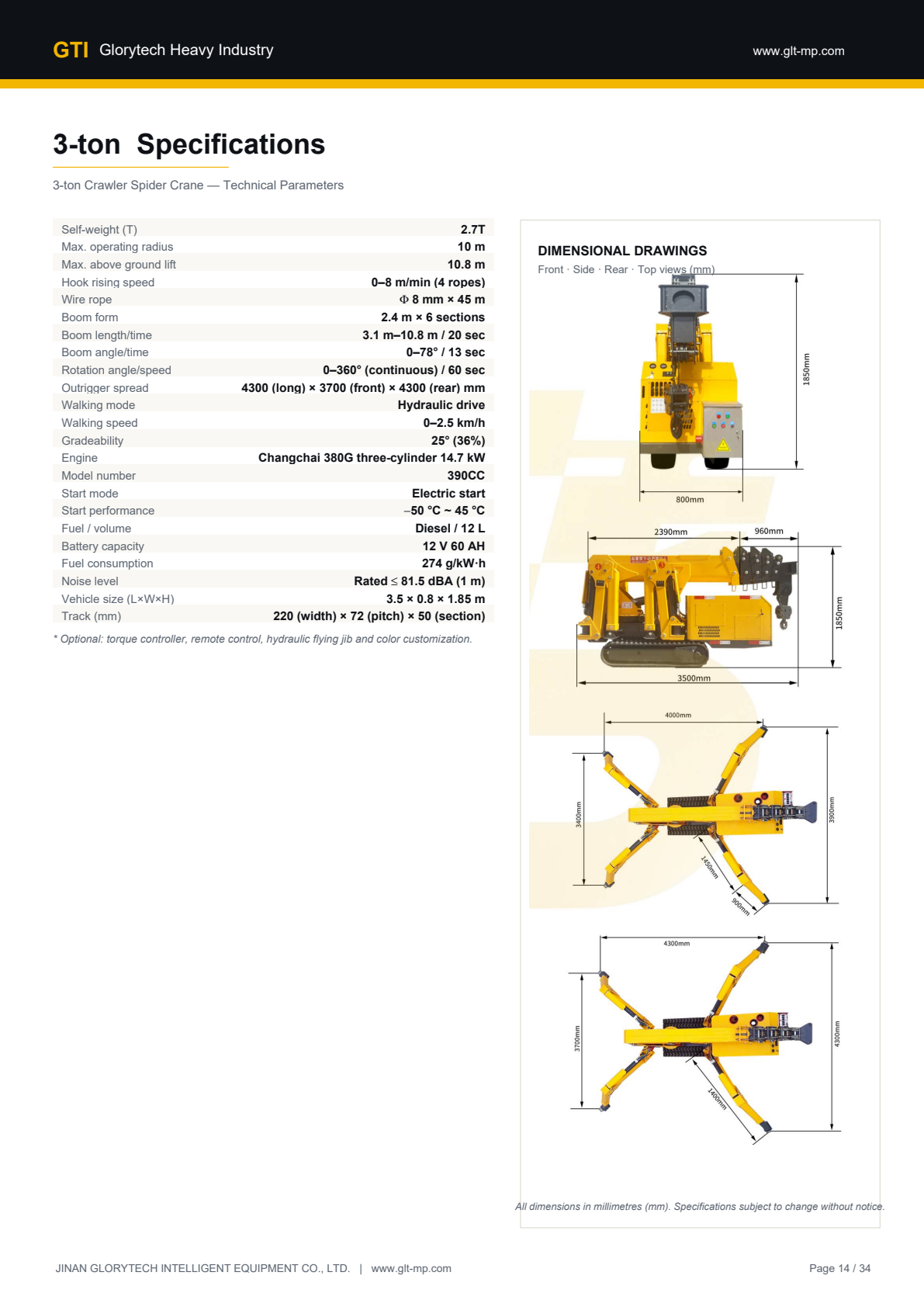

3-ton mid-range spider crane with 6-section telescopic boom and 10.8 m lift height - dual-power diesel + electric drive for indoor and outdoor general construction.
| Self-weight | 2.7 T |
|---|---|
| Max. operating radius | 10 m |
| Max. above ground lift | 10.8 m |
| Hook rising speed | 0-8 m/min (4 ropes) |
| Wire rope | F 8 mm x 45 m |
| Boom form | 2.4 m x 6 sections |
| Boom length/time | 3.1-10.8 m / 20 sec |
| Boom angle/time | 0-78 deg / 13 sec |
| Rotation angle/speed | 0-360 deg (continuous) / 60 sec |
| Outrigger spread | 4300 (long) x 3700 (front) x 4300 (rear) mm |
| Walking mode | Hydraulic drive |
| Walking speed | 0-2.5 km/h |
| Gradeability | 25 deg (36%) |
| Engine | Changchai 380G three-cylinder 14.7 kW |
| Start mode | Electric start |
| Start performance | 50 ~ 45 deg C |
| Fuel / volume | Diesel / 12 L |
| Battery capacity | 12 V 60 AH |
| Fuel consumption | 274 g/kW.h |
| Noise level | Rated <= 81.5 dBA (1 m) |
| Vehicle size (LxWxH) | 3.5 x 0.8 x 1.85 m |
| Track | 220 (width) x 72 (pitch) x 50 (section) mm |
* Optional: torque controller, remote control, hydraulic flying jib and color customization.
