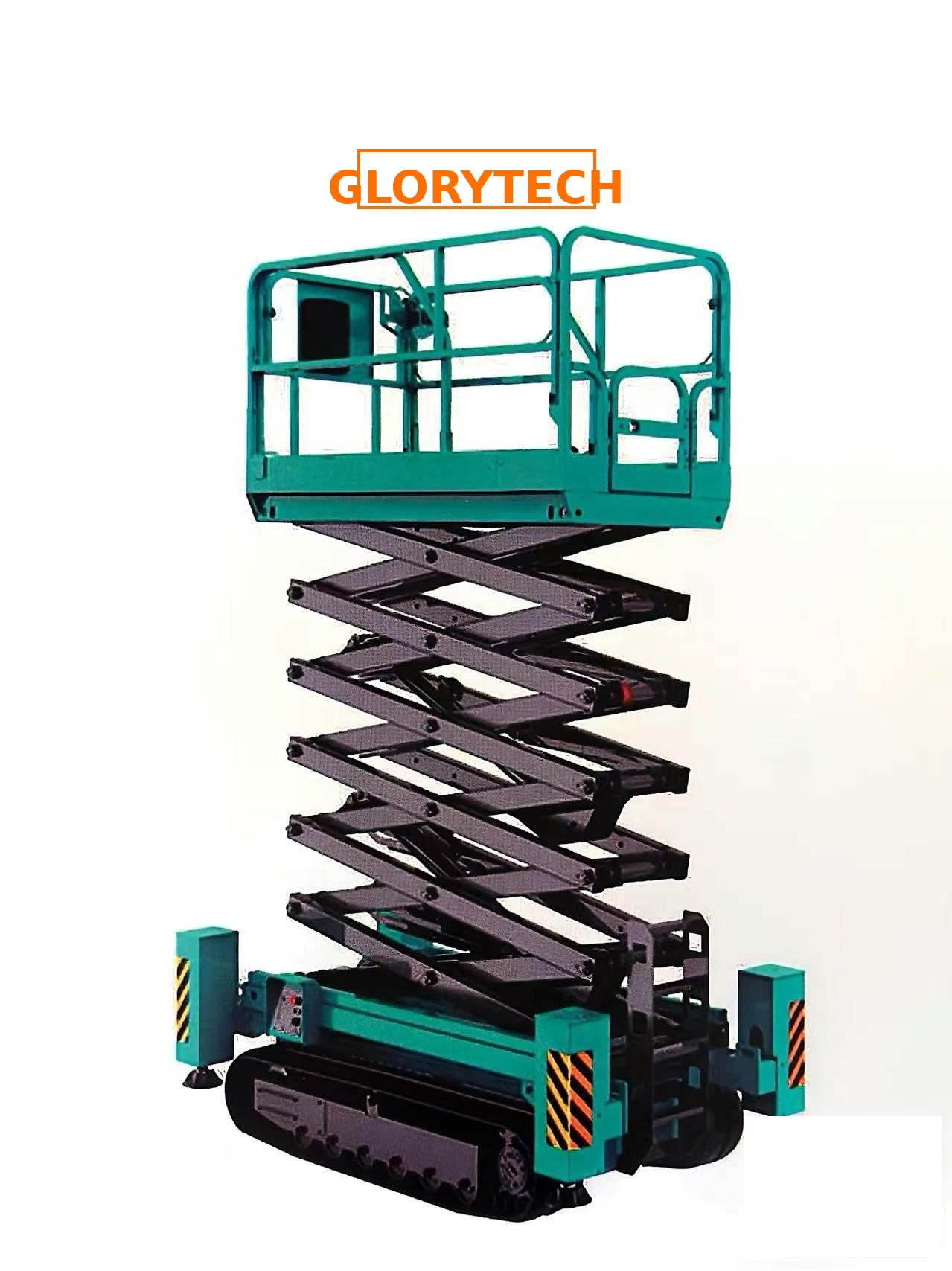

GCS0813LD Crawler Scissor-Fork Lift - 10m Working Height

Key Features

• 10m Working Height / 8m Platform Height — Mid-range crawler scissor lift with generous vertical reach for indoor facility maintenance, outdoor construction, and warehouse high-rack installation.
• Steel/Rubber Interchangeable Track System — Quick-swap track design lets you switch between non-marking rubber (delicate indoor floors, hospitals, hotels, malls) and heavy-duty steel (rough outdoor terrain, construction sites, uneven ground) in minutes — one machine, two environments.
• 450kg Main + 113kg Extended Platform Capacity — Heavy-duty platform supports 2 workers indoors or 2/1 indoors/outdoors configuration with full tool load. Extension platform adds workspace for hard-to-reach areas.
• 48V/4.5kW Lifting + 2×4kW Travel Motors — Powerful 48V system with dedicated lifting and travel motors for smooth, simultaneous operation. 4-wheel drive provides excellent traction on uneven terrain.
• 360° Rotation + Zero Turning Radius — Full 360° turntable rotation with zero-radius steering eliminates the need for reversing in tight spaces — perfect for narrow passages, warehouse aisles, and congested work sites.
• 2455mm Compact Footprint — Compact body design with foldable guardrails for easy transport through standard doorways and in elevators. Low ground pressure protects sensitive indoor surfaces.
• CE Certified Safety Systems — Full CE compliance with emergency descent, tilt sensor, anti-pinch protection, overload detection, automatic platform leveling, dual emergency stops (top/bottom), and manual power-failure lowering.
• Intelligent Human-Machine Interaction — Digital dashboard displays device status, working condition, fault codes, and abnormal warnings for effective operations management and predictive maintenance.
