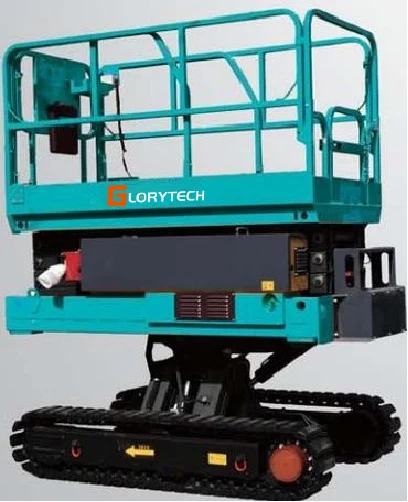

The GCS-Z08TSL Bi-leveling Tracked Scissor Lift Work Platform is an advanced self-leveling aerial work equipment manufactured by GLORYTECH . Featuring a dual scissor mechanism with crawler track drive system, this lift provides exceptional stability and self-leveling capability on uneven terrain for a wide range of industrial and outdoor applications.
| Model | GCS-Z08TSL |
|---|---|
| Type | Bi-Leveling Tracked |
| Manufacturer | GLORYTECH |
| Max Working Height | 10.3m |
| Max Platform Height | 8.3m |
| Platform Dimensions (L×W) | 2.28 × 1.136 × 1.26m |
| Length (Stowed) | 2.53m |
| Width (Stowed) | 1.37m |
| Height (Stowed) | 2.84m / 2.33m |
| Wheelbase | 1.8m |
| Machine Weight | 3398kg |
| Platform Occupancy | 2 persons |
| Platform Capacity | 250kg |
| Extension Deck Capacity | 113.3kg |
| Drive Speed (Stowed) | 2-3km/h (high) / 0.8-1.2km/h (low) |
| Drive Gradeability | 36% |
| Turning Radius (Inside/Outside) | Self-leveling ±15° (front) ±20° (rear) |
| Drive & Steer Mode | Crawler Track |
| Tire Type | Crawler Track |
| Tire Size | Crawler Track |
| Drive System | Crawler Track |
| Engine / Battery | 48V/200Ah |
| Engine Power | 4kW Lifting / 4kW Walking |
| Fuel Tank Volume | N/A |
| Hydraulic Oil Capacity | 32L |
| Certification | CE |
| Application | Indoor & Outdoor Aerial Work |
Tell us your quantity, destination port and any customization needs — our export team replies within 12 hours.
Factory-direct pricing, CE certified, shipping to 50+ countries. Tell us your working height — we reply within 12 hours.
