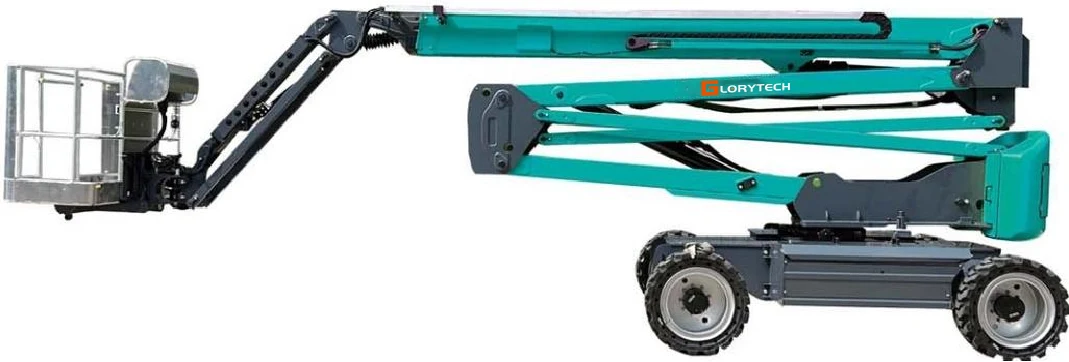

The GT-V09 is an electric articulating boom lift from GLORYTECH with a 11.5m maximum working height, 4.5m up-and-over clearance and 200kg platform capacity. Its Σ-shaped boom, zero-emission battery drive and compact stowed size make it ideal for confined indoor and outdoor job sites.
| Model | GT-V09 |
|---|---|
| Type | Electric Articulating Boom Lift |
| Manufacturer | GLORYTECH |
| Max Working Height | 11.5m |
| Max Platform Height | 9.5m |
| Max Up and Over Clearance | 4.5m |
| Max Working Radius | 6.2m |
| Platform Dimensions (L×W) | 1.4×0.7m |
| Length (Stowed) | 5.2m |
| Width | 1.27m |
| Height (Stowed) | 2.0m |
| Wheelbase | 1.75m |
| Platform Capacity | 200kg |
| Platform Occupancy | 2 |
| Platform Rotation | ±80° |
| Jib Rotation | ±70° |
| Turntable Rotation | 355° |
| Drive Speed (Stowed) | 4.8km/h |
| Gradeability (Stowed) | 35% |
| Max Working Angle | 3° |
| Turning Radius (Outside) | 3.3m |
| Drive and Steer | 2×2 |
| Machine Weight | 4800kg |
| Tire | 22×7-17 |
| Battery | 48V/320Ah |
| Pump Motor | 4kW |
| Drive Motor | 3.3kW |
| Charger | 48V/35A |
| Emergency Power System | 24V Electric |
| Certification | CE |
