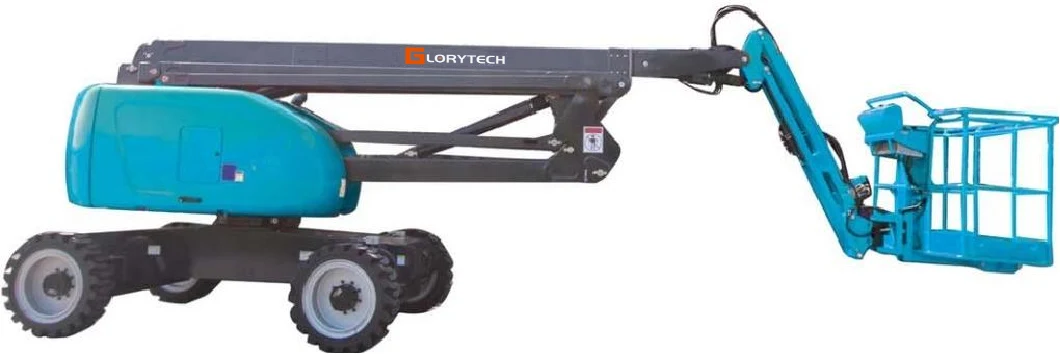

GT-V30D Diesel Articulating Boom Lift - 32m Working Height

Key Features

• 12.2m Up-and-Over Clearance — Industry-leading articulating boom that reaches OVER obstacles, balcony railings, warehouse racking, and building overhangs — the signature advantage of articulating boom design for confined-space operation.
• 32m Maximum Working Height — High-reach telescopic capability combined with multi-joint articulation enables direct access to tall structures such as building facades, industrial chimneys, and stadium roofs.
• ±70° Vertical Jib Rotation — Multi-section articulating boom with vertical jib at the platform end allows the operator to position the platform precisely over, under, and around obstacles without repositioning the entire machine — a key articulating boom advantage over straight telescopic booms.
• 20.2m Maximum Working Radius — Exceptional horizontal reach combined with up-and-over articulation allows operators to access areas deep inside structures, across factory floors, and around complex building geometry from a single setup position.
• 230kg (unrestricted) / 480kg (restricted) Platform Capacity — Heavy-duty platform supports up to 2 operators with full tools and materials — well-suited for industrial maintenance crews and outdoor construction teams.
• CUMMINS Diesel Engine (54kw/2400rpm) — Reliable CUMMINS turbo-diesel powerplant with 151L fuel tank, providing 8-10 hours of continuous operation per refuel — built for sustained outdoor heavy-duty use in construction, infrastructure, and industrial maintenance.
• 4×4 Drive with 40% Gradeability — 4×4 drive with 385/65-22.5 heavy-duty tires and 40% climbing grade allows operation on rough outdoor construction sites and uneven terrain.
• CE Certified Safety Systems — Full CE compliance with emergency descent, tilt sensor, anti-pinch protection, overload detection, automatic platform leveling, and emergency power unit.
